Descriptions

10 pairs LSA disconnection module with color label (TP-1201-10CL) is used throughout the distribution level, in the main distribution frames (MDF), in the cross connection cabinets (CCC) or in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.

It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

10 pairs LSA disconnection modules use a normally closed two piece contact, with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test cord can be inserted into a pair to test each side of the circuit independently. This greatly accelerates fault identification. The center contact point can also be used for overvoltage or current protection.

Main Features

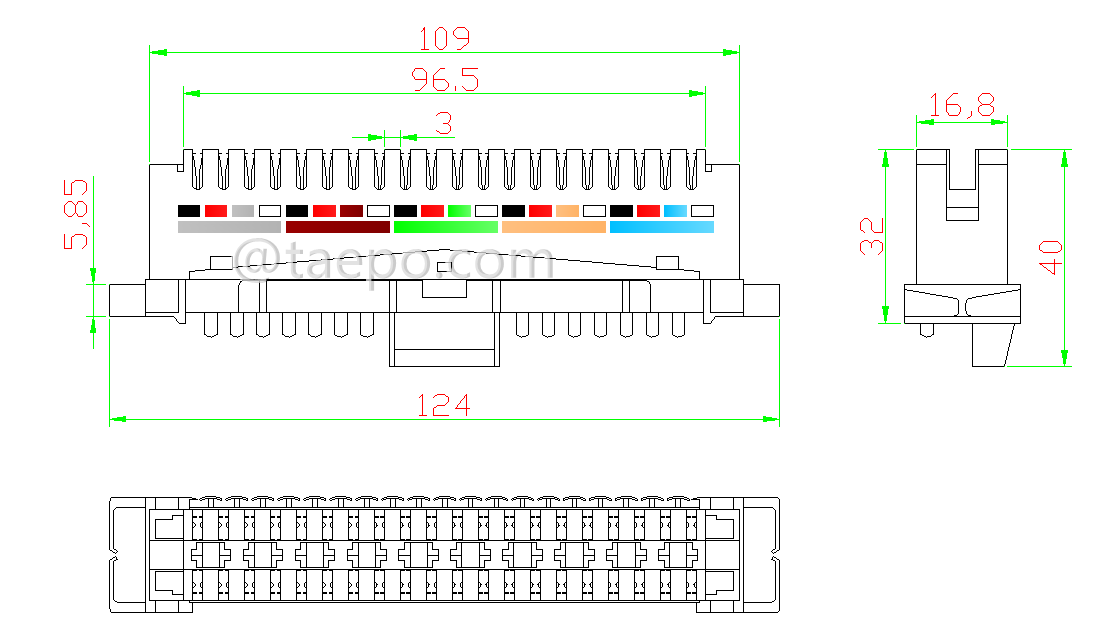

Schematic Diagrams

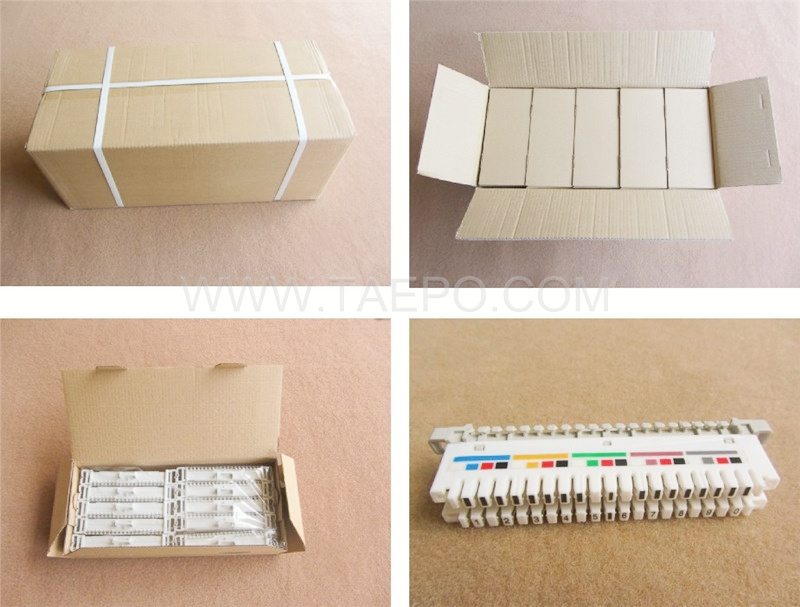

Packing Pictures





Order Data
