Outdoor 2400 Pairs Cross Connection Cabinet SMC Housing

TP-1803-2400

Protect your outdoor cross connection with our durable SMC housing. It can hold up to 2400 pairs and keep your connections safe from harsh weather conditions.

Quantity

Contact Now

add to cart

Descriptions

Our Outdoor 2400 Pairs Cross Connection Cabinet SMC Housing is designed to protect your outdoor cross connection from harsh weather conditions. With a capacity of 2400 pairs, this housing ensures that your connections remain safe and secure.

The cabinet is made of durable SMC material, which provides excellent resistance to temperature, water, and UV rays. It features a lockable and removable front door that facilitates easy access to the connections. The housing also has an optional thermostat-controlled fan that maintains a stable temperature inside the cabinet.

It is ideal for use in telecom networks, industrial sites, and other outdoor applications. With this cabinet, you can eliminate the risk of your connections becoming damaged due to harsh weather conditions, ensuring optimal network performance.

Main Features

1.Insulation Displacement Connection

2.No Wire-stripping, screw and solder free

3.Reliable connections

4.Clear labeling

5.Exact cable guiding

6.Flame retardant performance

7.Total front operations

8.Modular design and installations

9.Gas tight connection

10.One push wire insertion

11.Robust long-term environmental stability

12.Water and dust proof IP 65

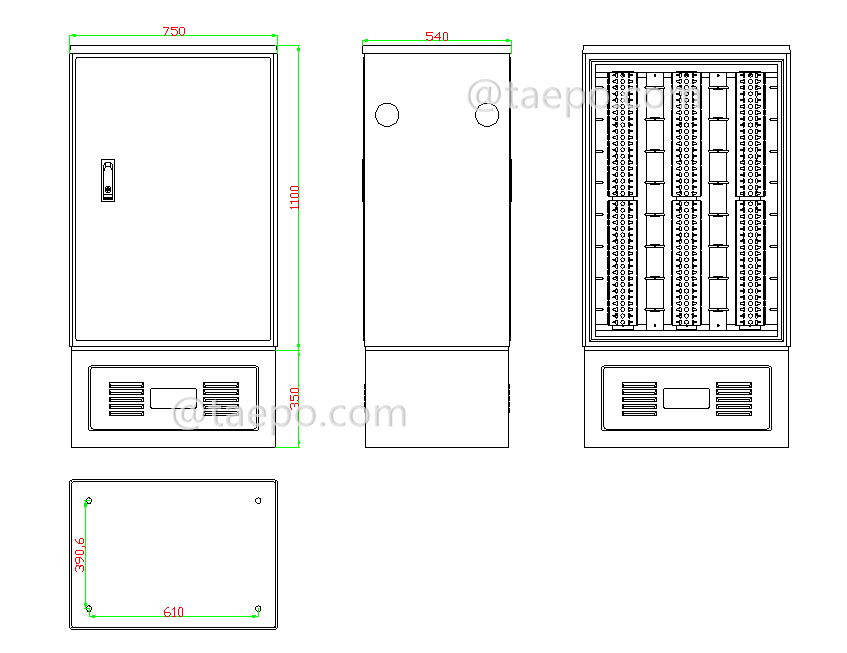

Schematic Diagrams

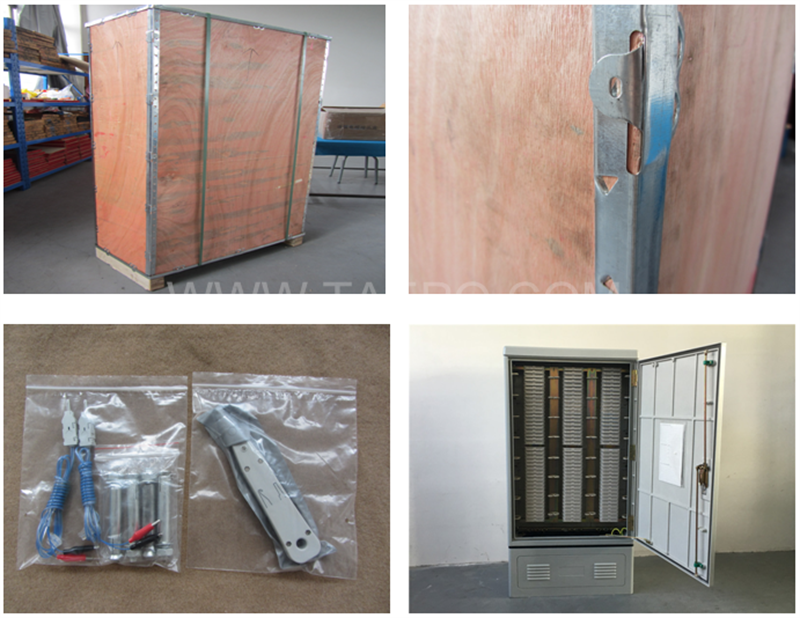

Packing Pictures

Order Data

Item No	Descriptions
TP-1803-2400	Outdoor 2400 pairs cross connection cabinet, SMC housing, with base, double-sided, for LSA module, 400pairs x 3 columns, 1450(H) x 750(W) x 540(D)mm, with 2400P back mount frame, cable clamp, cable rings, without LSA modules
