10 pairs STG connection module

TP-1311-10C
The STG connection module is designed to save time and reduce errors when connecting cables. With its easy-to-use design, it provides a quick and robust solution for a wide range of applications.
Quantity
Contact Now
add to cart

Descriptions

The STG connection module is a versatile solution for any electrical installation. It simplifies the process of connecting cables, preventing mix-ups and reducing the risk of errors, and the compact design saves valuable space in the cabinet.
The module features a cage clamp design for secure connections that resist vibration and accidental disconnection. The unit includes an integrated test point, allowing you to quickly and easily measure voltages and currents.
The STG connection module is also designed with flexibility in mind, supporting wire sizes up to 4 mm² with a maximum rated voltage of 800V AC, and its rugged construction makes it ideal for use in harsh environments. With its ease of use and robust design, the STG connection module is a reliable choice for many applications, including building automation, industrial automation, and machine building.

10 pairs STG connection module (TP-1311-10C) is the last revolution of STG range of IDC (Insulation Displacement Connection) connection modules, that can be snapped onto STB back mount frame pitch 16mm.

This module offers category 5 transmission performance (100MHz) as a standard. As a result this module can be used in any modern network and is fully compatible with all kind of application.

With termination and wire removal are easily operated with standard termination tool TP-5908. Cables are managed from the rear and jumpers from the side. The base of the module offers cable and jumper strain relief facilities.

Straight IDC technology offers reliability and outstanding performance like multi termination, wire retention and gas connection. The module can connect solid copper conductor in a range of diameters from 0.4-0.8mm with max insulation 1.5mm.




Main Features

1.Insulation Displacement Connection
2.No wire-stripping, screw and solder free
3.Reliable connections
4.Clear labeling
5.Modular design and installations
6.Gas tight connection
7.One push wire insertion
8.Robust long-term environmental stability
9.Flexible indoor and outdoor use

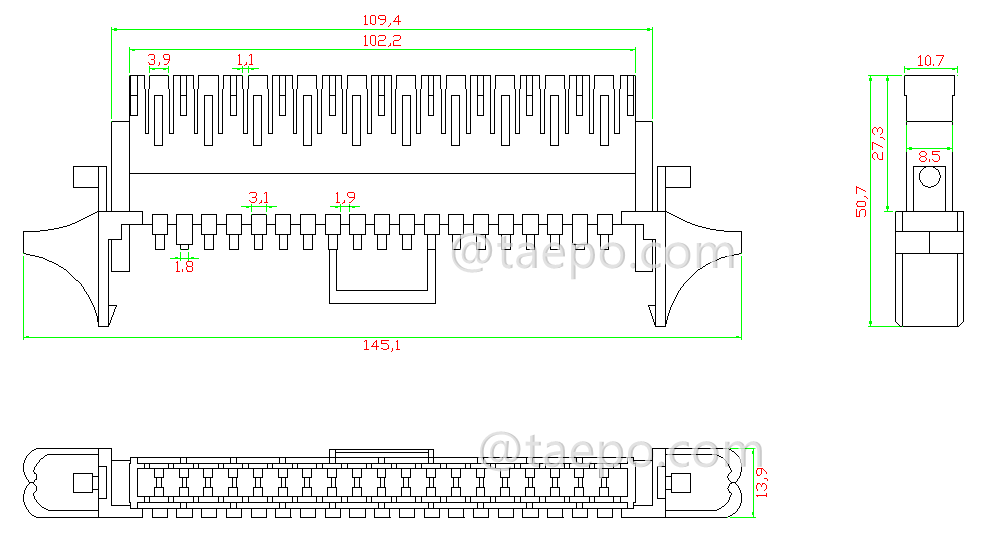

Schematic Diagrams

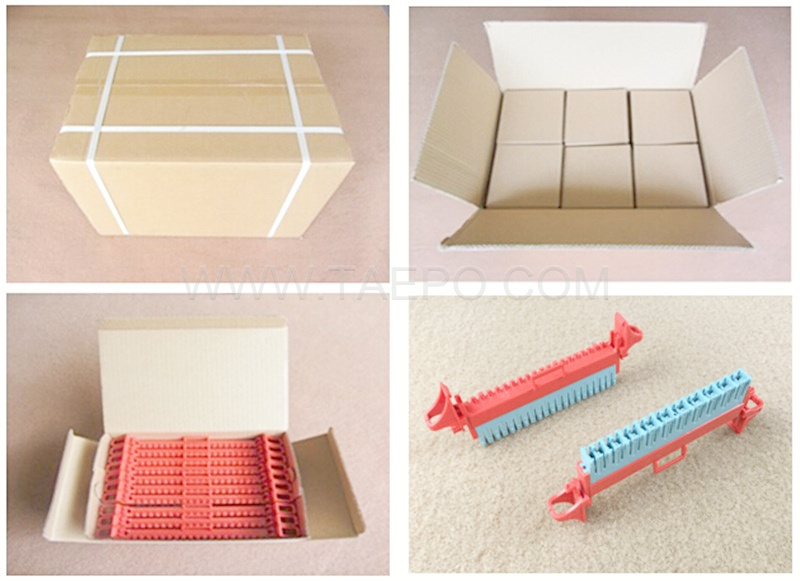

Packing Pictures





Order Data


Item No
Descriptions
TP-1311-10C
10 pairs STG connection module
