Fiber Splitter Box (FSB) Outdoor SC 8 Fibers
TP-3221-8S
The Fiber Splitter Box Outdoor SC 8 Fibers is a versatile solution for fiber optic cabling applications.
Quantity
Descriptions
Fiber splitter box outdoor SC/APC 8 fibers (TP-3221-8S FSB) also known as multidwelling unit (MDU) terminal, is a rugged, low-cost, low-profile interconnect between the central office feed and the indoor/outdoor drop cables for multidwelling unit applications.
It simplifies the MDU installation by reducing the materials, complexity and space required to turn up service. A single housing combines the functionality of a local convergence cabinet with an MDU terminal.
The multilayer design allows installers to access only the components necessary for initial installation or subscriber turn-up, while a protected layer houses the casette PLC splitter and allows for pigtail splicing of distribution/drop cables as needed.
Main Features
1.Both indoor and outdoor applications
2.Quick, easy and reliable connections
3.Craft-friendly with easy access
4.Maximum product lifetime and security
5.Closure structure with excellent sealing performance
6.Equipped with cable guide for tidy wiring
7.Bending radius greater than 40mm.

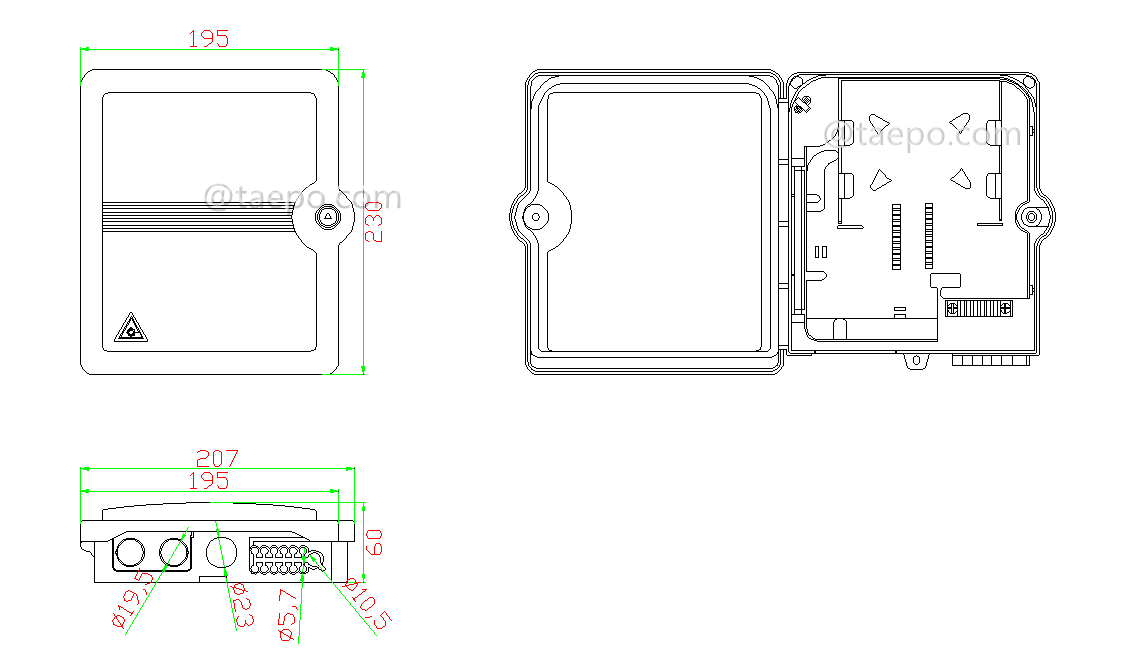

Schematic Diagrams

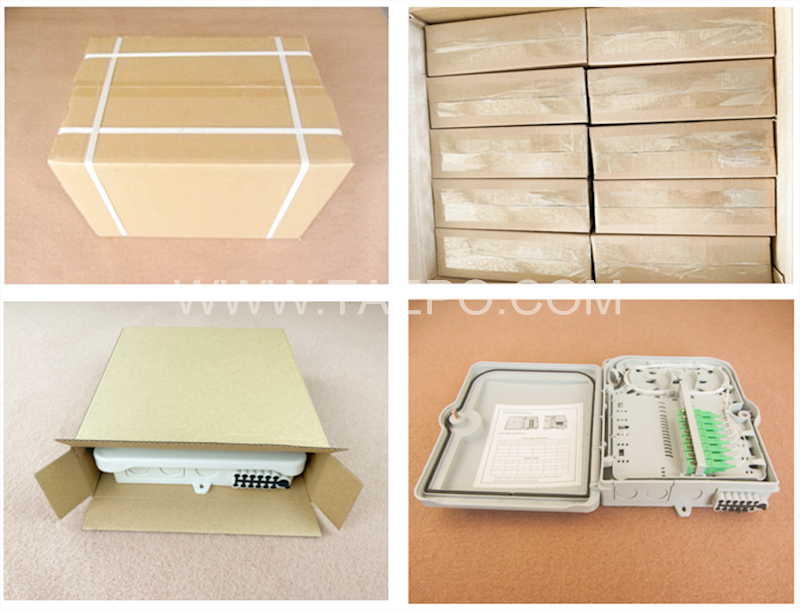

Packing Pictures
Order Data
Item No | Descriptions |
TP-3221-8S | Fiber splitter box (FSB), outdoor, SC, 8 fibers, plastic housing, 230x195x60mm, without casette PLC splitters |
