Fiber Splice Cassette for Secure and Easy Network Maintenance
TP-3115-24
Organize and protect fiber splices with our fiber splice cassette for seamless network performance.
Quantity
Descriptions
The Fiber Splice Cassette for Secure and Easy Network Maintenance offers a versatile solution for quick and simple maintenance of fiber optic networks. With a compact design that fits easily into standard racks, this cassette provides a secure, dust-free environment for splicing fiber optic cables. The device is also easy to use, with a simple locking mechanism that makes it simple to remove individual trays for patching or maintenance.
The cassette can be used in a variety of scenarios, including data centers, central offices, and telecommunications rooms, and can help solve several common network maintenance problems, such as reducing costs, improving network efficiency, and increasing network uptime.
The splice casette holds up to 24 splices sleeves, and several trays could be stacked together to splice a large fiber cable. Each tray provides space for mounting fiber splice protectors and excess fiber.
Main Features
1、Ensure the bending radii greater than 40mm.
2、Supplied with holders for splice sleeves
3、Easy retraction of surplus fiber
4、Easy repair and maintenance
5、Replaceable splice insert
6、Snap in cover

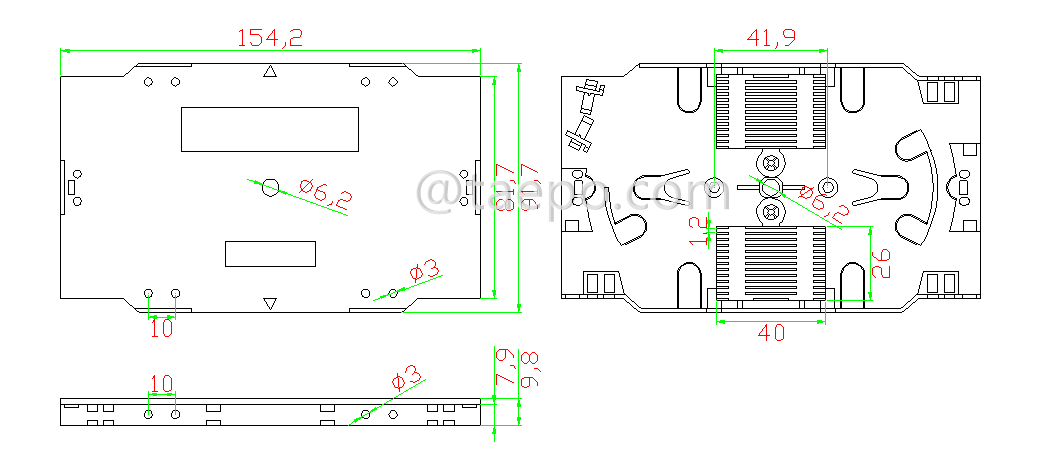

Schematic Diagrams

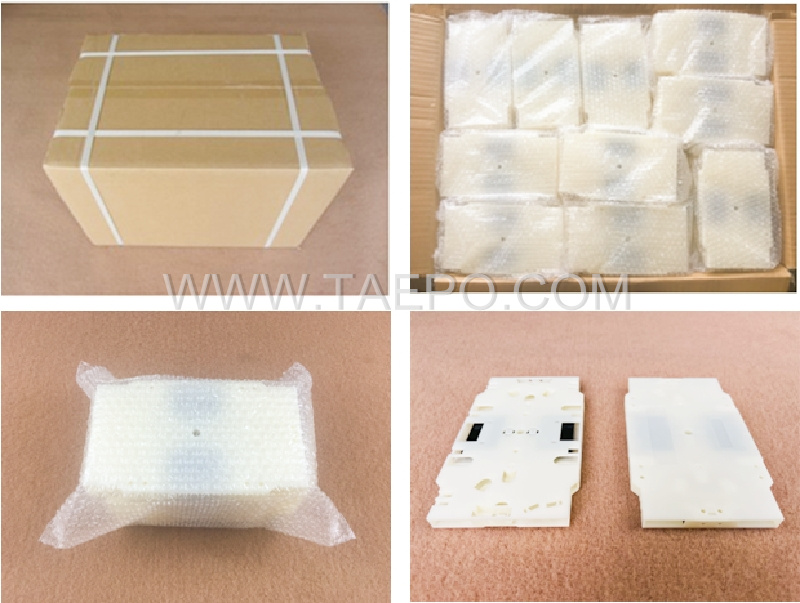

Packing Pictures
Order Data
Item No | Descriptions |
TP-3115-24 | Fiber splice cassette, 24 fibers, 154x92x8mm |
