Outdoor SC Fiber Splitter Box (FSB) 32 Fibers
TP-3230-32S
The Outdoor SC Fiber Splitter Box (FSB) 32 Fibers is a high-quality fiber optic splitter box that can split a single fiber line into multiple lines, providing stable and reliable connections to outdoor fiber optic networks.
Quantity
Descriptions
TP-3230-32S Fiber Splitter Box (FSB) is the device that terminates between the secondary fiber cables and drop cables, with the function of splicing, wiring, splitting and terminations.
It consists of splice trays, casette PLC splitter, pigtails and the external housing.
Splice tray is used for the function of splicing of the fiber cables and pigtails. Casette PLC splitter for splitting and terminations. The box is made of cold rolling steel, with powder coating.
The FSB is used for both indoor and outdoor applications.
Main Features
1.Closure structure with excellent sealing performance IP65.
2.Special fiber routing designs to ensure the bending radii greater than 40mm.
3.Adopting static powder coating techniques, rust-proof and beautiful appearance.
4.Equipped with cable guide for the wiring of extra fiber cables.
5.Casette splitter for easy splitting.

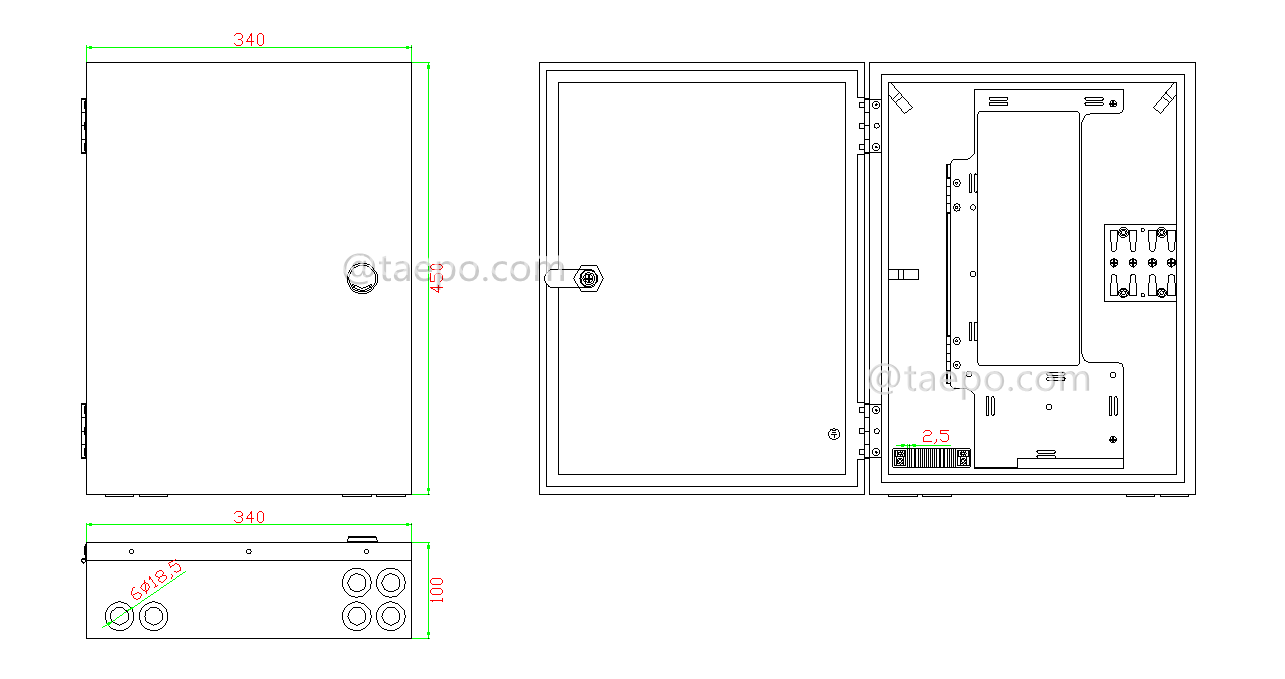

Schematic Diagrams

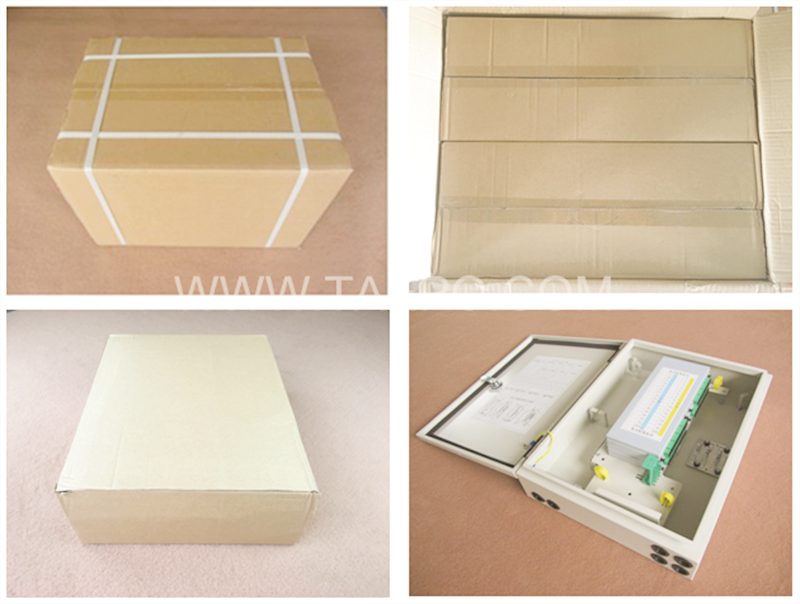

Packing Pictures
Order Data
Item No | Descriptions |
TP-3230-32S | Fiber splitter box (FSB), outdoor, SC, 32 fibers, cold rolling steel housing with powder coating, 450x340x100mm, without casette PLC splitters |
