Indoor SC Fiber termination box (FTB)1 Fiber
TP-3323-1
Efficiently terminate indoor fiber optic cables with our SC FTB1 Fiber termination box. Compact and easy to install, it ensures safe and secure connections, minimizing downtime and maximizing network performance.
Quantity
Descriptions
Fiber Termination Box indoor SC 1 fiber (TP-3323-1 FTB) provides a transition point between incoming cable and building access points for residential or business fiber installations.
The termination box is designed to house up to one SC type adapters and is compatible with SC field assembly connectors. Alternatively, an integrated splice holder houses up to two splices for pigtail termination.
The termination box is compatible with round and bow-type indoor drop cables with bending radius greater than 40mm
Main Features
1.Compact size
2.Slack storage area
3.Easy installation
4.Tindy wiring
5.Snap on cover
6.Bending radius greater than 40mm
7.Multi-location cable entry
8.Low insertion loss
9.High return loss
10.Good durability

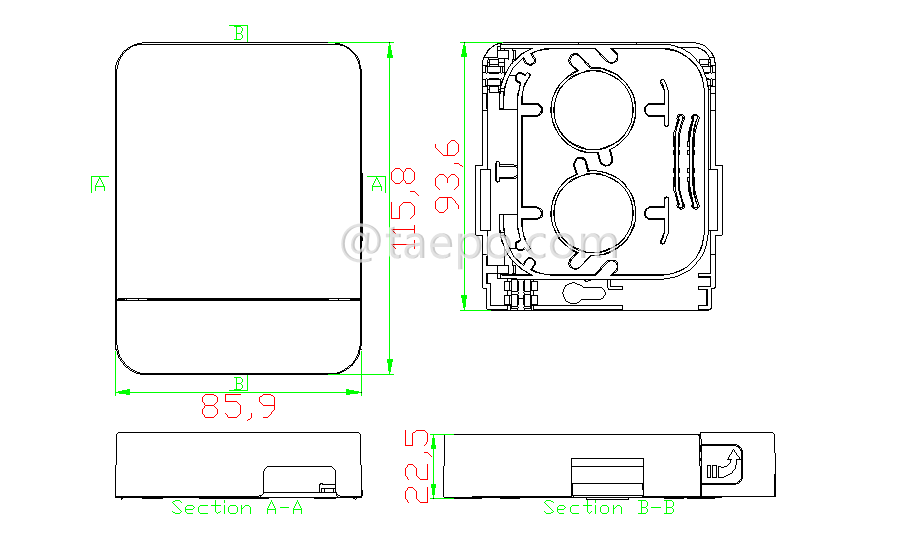

Schematic Diagrams

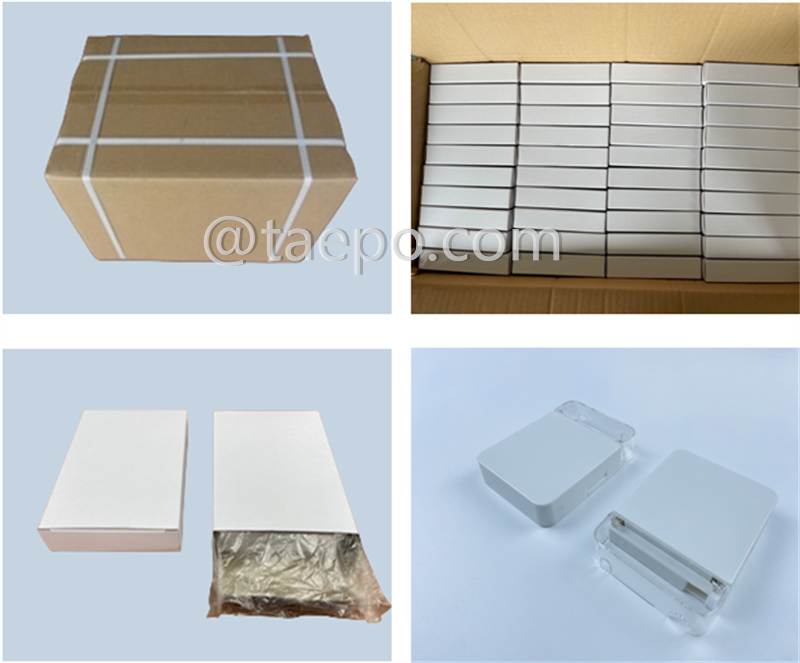

Packing Pictures
Order Data
Item No | Descriptions |
TP-3323-1 | Fiber termination box (FTB), indoor, SC, 1 fiber, plastic housing, 115x86x22mm, without adapters, pigtails |
