100 Pairs LSA Disconnection Block with Label Holder
TP-1418-100A
Organize your wiring system with ease using our LSA disconnection block with label holder. 100 pairs are available to meet your needs.
Quantity
Descriptions
Keep your wiring system tidy with our LSA disconnection block with label holder. Each block contains 100 pairs, providing ample space to organize your cables. The label holder allows you to easily identify the connections, simplifying future maintenance. Our block is designed for use in telecom closets, data centers, and other areas with high-density cable installation requirements.
Made with durable materials, our LSA disconnection block is built to last. Sized for easy installation in standard relay racks, this product is an ideal choice for professionals looking to simplify their work. Say goodbye to messy, unorganized cables and hello to a simpler, more efficient workflow with our LSA disconnection block.
100 pairs LSA disconnection block (TP-1418-100A) are used for both voice and data networks in the central office, cabinets and in private networks applications. With their reliable IDC (Insulation Displacement Connection) contacts they are the interface between the truck cable and drop cables. In addition to protection of personnel and equipment against over-voltage disturbances, the terminal blocks support quality inspection and diagnostic processes.
Normally the 100 pairs disconnection blocks are used on the vertical side of the Main Distribution Frame (MDF), which is used for the termination between external lines and jumper wires. It consists of 10 pieces 10-pair disconnection modules. The block is suitable for xDSL circuit. Also the blocks are used in Cross Connection Cabinets (CCC), Distribution Point (DP) boxes.
Our 1 pair MDF protector (TP-1501-1EGP) and 10 pairs over-voltage protection magazine (TP-1502-10P3G) can be inserted into the block, with the function of protecting personnel and equipment against over voltage and over-current.
The disconnection block also known as terminal block, tag block or distribution block.
Main Features
1.IDC Contacts
2.No Wire-stripping, screw and solder free
3.Reliable connections
4.Clear labeling
5.Exact cable guiding
6.Wire guides with double channels
7.Metal chassis
8.Flame retardant performance
9.Total front operations
10.Modular design and installations
11.Gas tight connection
12.One push wire insertion
13.Robust long-term environmental stability

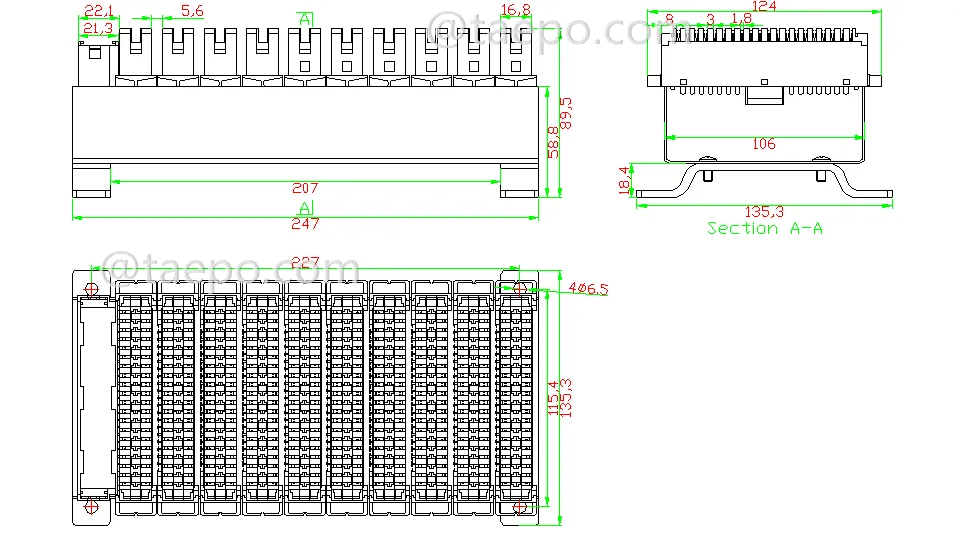

Schematic Diagrams

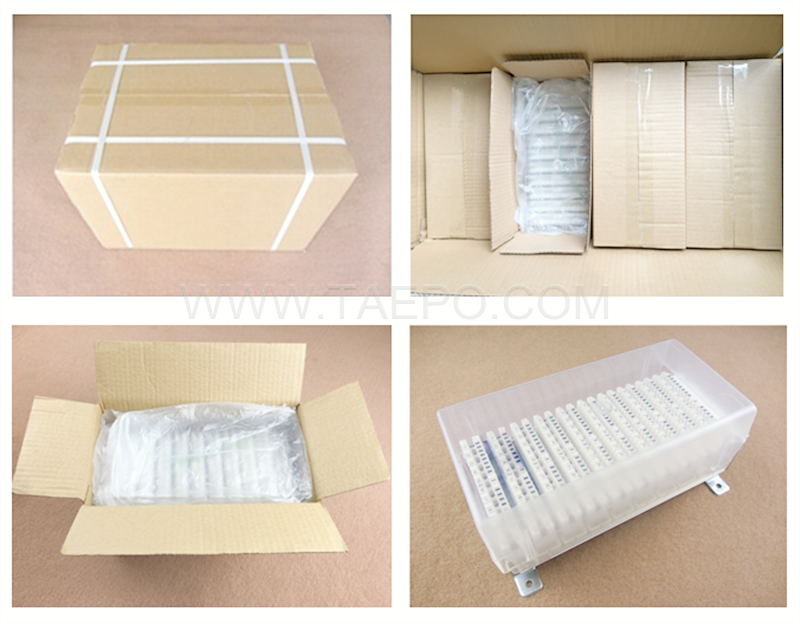

Packing Pictures
Order Data
Item No | Descriptions |
TP-1418-100A | 100 pairs LSA disconnection block, with label holder, earth wire, mounting accessories |
