Outdoor 20 pair Terminal Box for STB Module

TP-1714-20MG

This outdoor terminal box houses up to 20 STB modules, providing a secure and organized solution for network connections.

Quantity

Contact Now

add to cart

Descriptions

The Outdoor 20 Pairs Terminal Box is an ideal solution for outdoor network connections, designed to provide organization and security for up to 20 STB modules. The box is constructed from durable materials, ensuring protection against inclement weather and environmental factors. The STB modules connect easily to the terminal box and can be arranged in an organized and streamlined manner.

This product is designed to save time and effort during installation, as well as reduce maintenance and troubleshooting issues. The terminal box also offers a variety of mounting options for easy installation in any location. This product is perfect for outdoor network connections in a range of industries including telecommunications, transportation and surveillance.

Main Features

1.Insulation Displacement Connection

2.No wire-stripping, screw and solder free

3.Reliable connections

4.Clear labeling

5.Modular design and installations

6.Gas tight connection

7.One push wire insertion

8.Robust long-term environmental stability

9.Flexible indoor and outdoor use

10.Wall or pole mountable

11.Quick mounting and installation

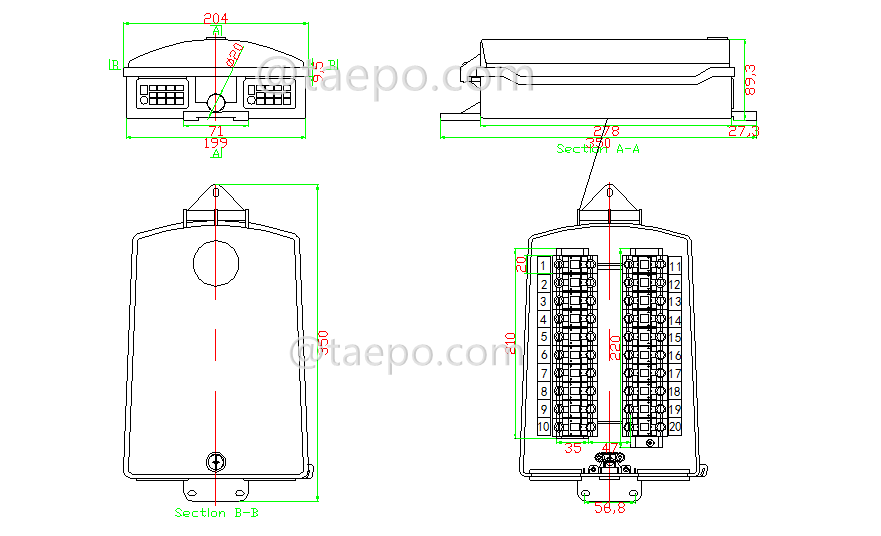

Schematic Diagrams

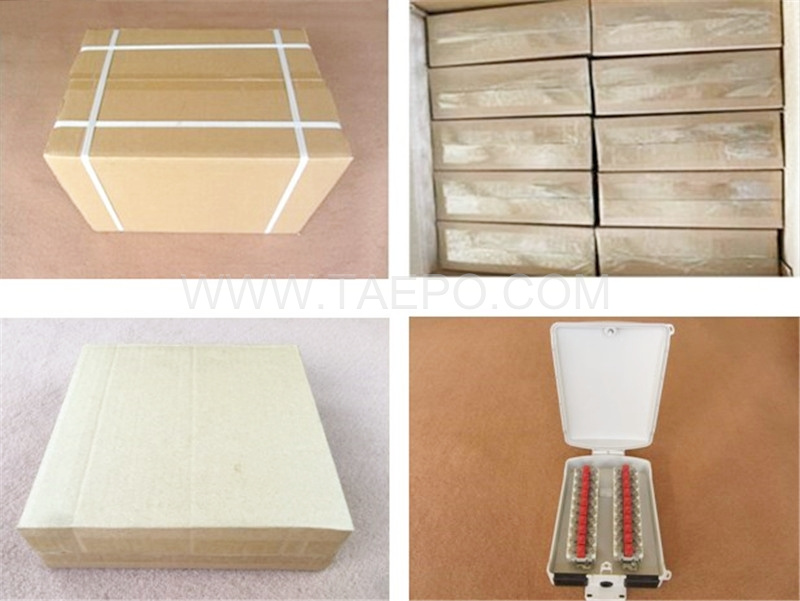

Packing Pictures

Order Data

Item No	Descriptions
TP-1714-20MG	Outdoor 20 pairs terminal box for STB module, 350x204x90mm, screw snap locking, plastic housing, with STB module with over-voltage protection
