SC 48 Fibers Rack Mounted ODF 19"
TP-3204-48B
This ODF with SC connectors provides high-density connectivity and easy fiber management in data centers and telecommunications networks.
Quantity
Descriptions
The SC 48 Fibers Rack Mounted ODF 19"is a high-density fiber optic distribution frame that provides an easy and cost-effective solution for managing fiber optic cables in data centers and telecommunications networks. This ODF is designed to support up to 48 fiber optic connectors, with SC adapters, and is rack mountable in a standard 19"rack. It is made with high-quality materials and features a compact design that allows for easy installation and maintenance.
With its superior performance, reliability, and flexibility, this ODF is ideal for a variety of applications, including fiber optic backbone, access, and distribution networks. It provides a complete solution for fiber optic interconnection and termination, and solves many issues for users, including limited space, complex cabling, and difficult connectivity. This ODF also offers excellent cable management, ensuring that cables are neatly organized and easily accessible. It is an essential part of any fiber optic network, providing high-density connectivity and easy fiber management.
Main Features
1.Excellent cable management
2.high-density connectivity
3.Easy fiber management

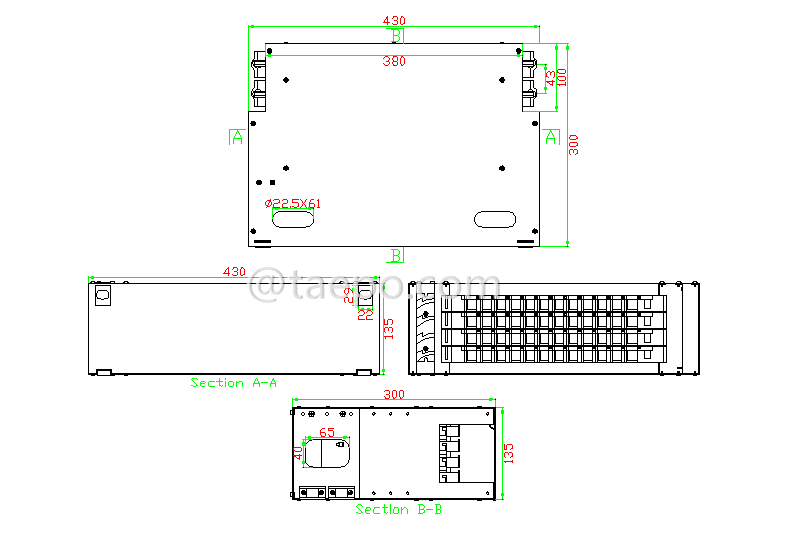

Schematic Diagrams

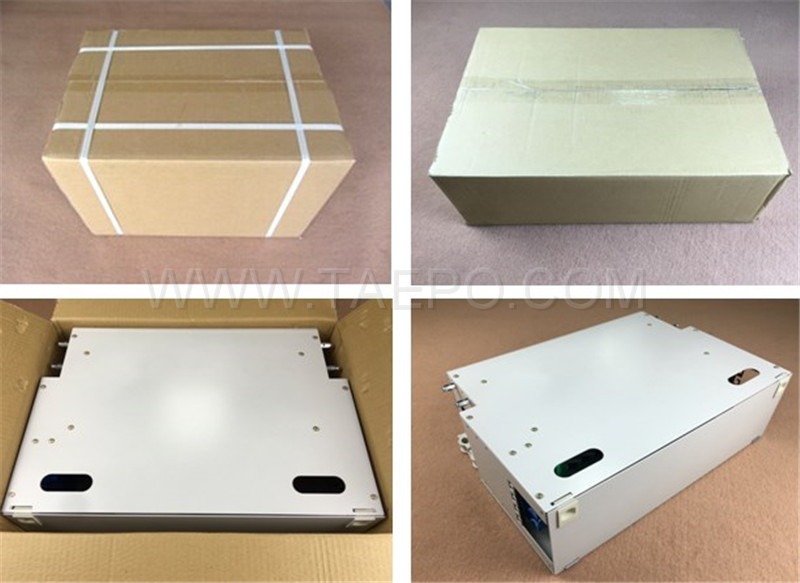

Packing Pictures
Order Data
Item No | Descriptions |
TP-3204-48B | Rack mounted ODF, 19", SC, 48 fibers, plastic guide rail sliding, cold rolling steel housing with powder coating, 485x300x135mm, without adapters, pigtails |
