2 wire gel filled UY2 red butt connector

TP-1310-UR2

This UY2 Butt Connector is a 2-wire connection pack. Easy and reliable connection for faster and tidier wiring.

Quantity

Contact Now

add to cart

Descriptions

Our UY2 red butt connector is a perfect choice for anyone looking for a reliable and simple way to connect two wires. With its easy to use design, it makes wiring faster and tidier by eliminating the need for soldering. This 50 pack of UY2 2-wire red butt connectors is a great investment for any DIY enthusiast or professional electrician.

This connector is made of high-quality materials that provide a strong and secure connection. What sets our UY2 red butt connector apart from the rest is its dual blades that make contact with both wires, ensuring better conductivity and reducing the risks of failures.

When you're working on a project that requires a stable and clean electrical connection, our UY2 red butt connector is the solution. This product can be used in a variety of different situations, including home wiring, automotive wiring, marine wiring and much more. Thanks to its compact size, it can be used even in the tightest spaces. Get rid of the mess and hassle of traditional wire connections and switch to our UY2 red butt connector for 2-Wires.

UR2 red butt connector (TP-1310-UR2) the small size of the UR2 red butt connector reduces the splicing bundle O.D. to a minimum. The connector’s three ports accept three solid or stranded copper conductors. The connector is filled with a sealant to provide moisture resistance.It is employs an insulation displacement contact (IDC) so that stripping of the conductor insulation prior to installation is not required,and easily installed and crimped using any of the connector crimping tools (TP-5931-311)

It is applied to telephone wiring connection. The butt connector is designed for 0.4mm-0.9mm solid copper cables with max insulation diameters 2.08mm.

The connector is filled with a moisture resistant compound in order to provide moisture proof connections.The connector can provide total environmental sealing around IDC-contacts.

Main Features

1.Insulation Displacement Connection

2.No Wire-stripping, screw and solder free

3.Reliable connections

4.Gas tight connection

5.One crimping wire connection

6.Robust long-term environmental stability

7.Translucent material-less mistakes

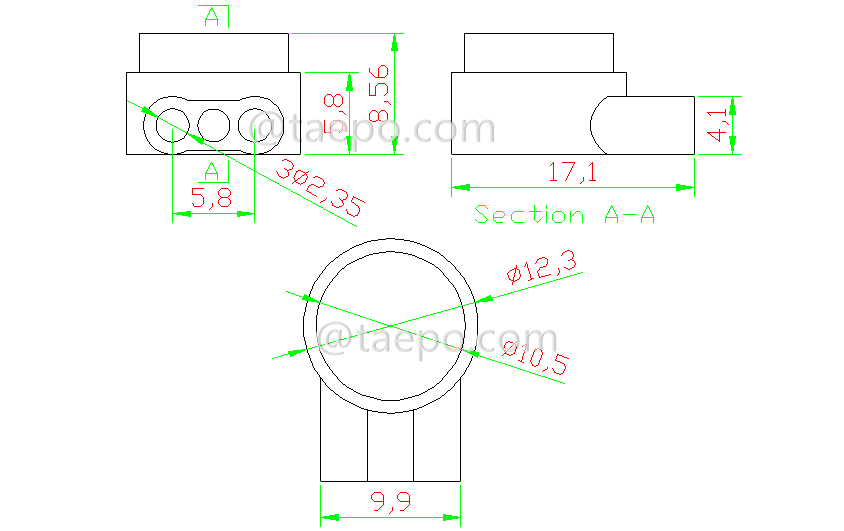

Schematic Diagrams

Packing Pictures

Order Data

Item No	Descriptions
TP-1310-UR2	UY2 butt connector, 2-wire, 0.4-0.9mm conductor, max insulation 2.08mm, dual pins, gel filled
