1 pair dropwire STB module without protection
TP-1301-1
This STB module is gel-filled and comes without protection for improved connectivity. Ideal for telecommunications and home installations.
Quantity
Descriptions
Our 1 Pair Dropwire STB module without protection and gel-filled is excellent for use in telecommunications and home installations. The gel filling ensures improved connectivity, making it easier to make repairs or changes. Without protection, this module is perfect for those who prefer an unobstructed connection for a better signal.
With its improved connectivity, it's ideal for handling voice and data transmissions efficiently. This module ensures better signal reception and reduces the likelihood of signal distortion. It is compact and easy to install, making it a perfect solution for any telecommunications requirement.
1 pair dropwire STB module without protection gel filled (TP-1301-1) also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.
It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.
The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.
Main Features
1.Insulation Displacement Connection: IDC allows for the termination of wires without the need to strip off the insulation. The connection is made by displacing the insulation and making direct contact with the conductor within the wire.
2.Reliable connections: A reliable connection ensures that signals or data are transmitted consistently and accurately from the source to the destination without loss or distortion
3.Modular design and installations: Modular design and installations offer numerous advantages, including flexibility, scalability, simplified assembly, ease of maintenance, interchangeability, standardization, reduced failure risk, efficient testing, and cost savings.
4.Termination: The module provides a termination point for a single pair of copper wires from the subscriber's dropwire. It allows for a secure and reliable connection of the individual wires within the dropwire.
5.Connection points: The module includes terminals or connectors for connecting the subscriber's dropwire and the main distribution cable. These connection points are insulation displacement contacts (IDCs).
6.Compact design: The module is usually designed to be compact and easy to install. It can be mounted on walls, poles, or other suitable surfaces.
7.Durability: The module is built to withstand outdoor conditions and has a durable housing that protects the internal components from environmental factors such as moisture, dust, and temperature fluctuations.

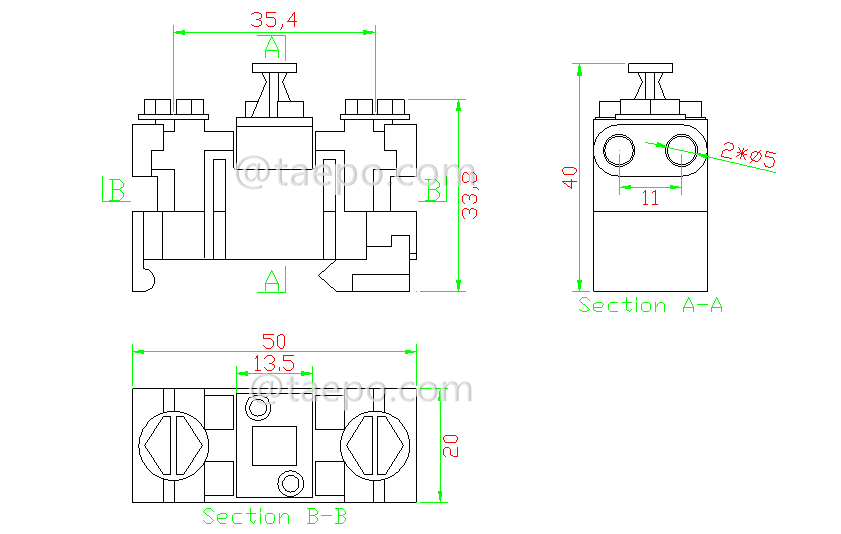

Schematic Diagrams

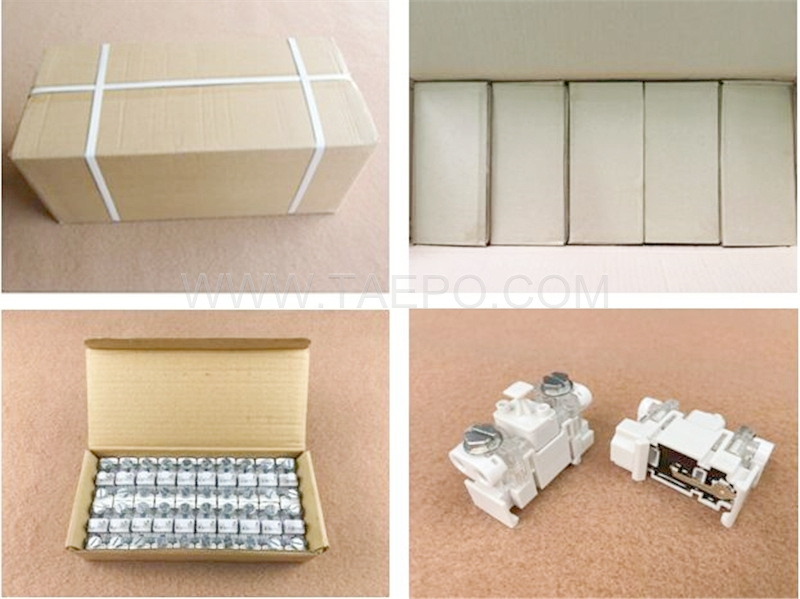

Packing Pictures
Order Data
Item No | Descriptions |
TP-1301-1 | 1 pair dropwire STB module without protection, gel filled |
