STB module
STB module
STB module
over voltage protection
dropwire STB

1 pair dropwire STB module with over voltage protection

TP-1301-1G
Protect your devices from power surges with this safeguarded STB module. Grease filling provides an extra layer of protection against moisture and contaminants.
Quantity
Contact Now
add to cart

Descriptions

This 1 pair dropwire STB module guarantees the safety and security of your electronic devices against over-voltage thanks to its built-in protection feature. Grease-filled to prevent moisture and contaminants from damaging your equipment.
With this product, there's no need to worry about the hassle of constantly replacing equipment due to power surges. It's easy to install and the compact size makes it suitable for various applications. Protect your equipment and avoid any unexpected costs with this STB module.

1 pair dropwire STB module with protection gel filled (TP-1301-1G) also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

  • The surge voltage caused by lightning on or around the outside lines.

  • The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.

  • The outside line directly collides against a 220 V power line.

It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.





Main Features

1.Insulation Displacement Connection
2.No wire-stripping, screw and solder free
3.Reliable connections
4.Modular design and installations
5.Gas tight connection
6.Robust long-term environmental stability
7.Flexible indoor and outdoor use
8.Graded 5 point protection
9.Fail Safe (FS) function

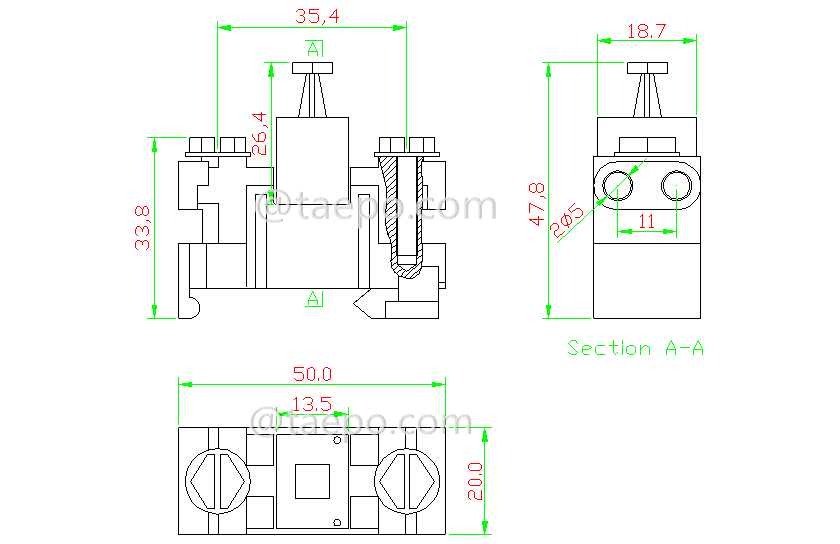

Schematic Diagrams

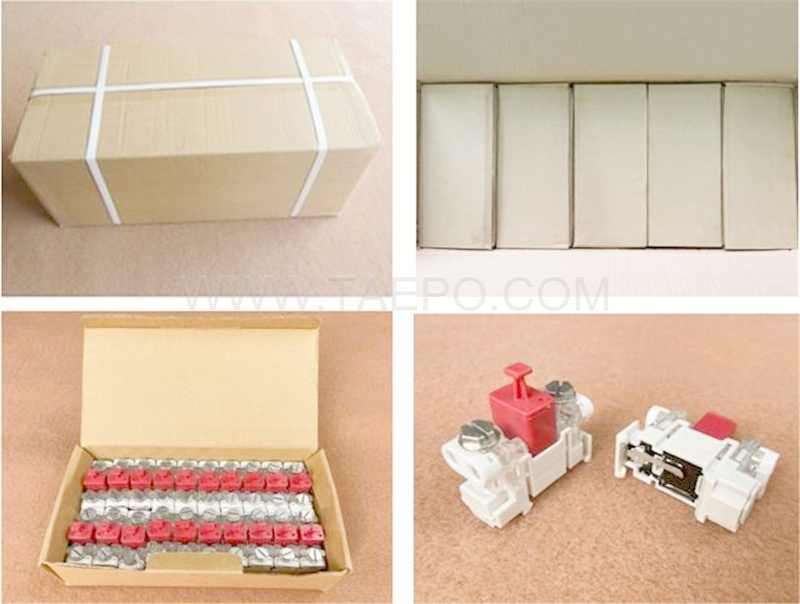

Packing Pictures





Order Data


Item No
Descriptions
TP-1301-1G
1 pair dropwire STB module with over-voltage protection, grease filled
