Outdoor 20 Pairs Distribution Point Box for STB Module
TP-1712-20MG
This distribution point box is designed for outdoor use and can accommodate up to 20 pairs of STB module connections, making it suitable for a range of telecommunications applications.
Quantity
Descriptions
The Outdoor 20 Pair Distribution Point Box with STB Module is a durable and weather-resistant solution for distributing telecommunications signals in outdoor environments. With capacity for up to 20 pairs of STB module connections, this box can be used in a range of applications, from residential installations to industrial settings. It features a built-in STB module, providing a convenient solution for signal distribution.
The box is easy to install and designed for reliable operation in harsh environments. With its compact size and rugged construction, it is ideal for use in areas where space is limited, such as on poles or in junction boxes. The Outdoor 20 Pair Distribution Point Box with STB Module solves the problem of outdoor signal distribution with ease, providing a reliable and efficient solution for any telecommunications network.
Main Features
1.Insulation Displacement Connection
2.No wire-stripping, screw and solder free
3.Reliable connections
4.Clear labeling
5.Modular design and installations
6.Gas tight connection
7.One push wire insertion
8.Robust long-term environmental stability
9.Flexible indoor and outdoor use
10.Wall or pole mountable
11.Quick mounting and installation

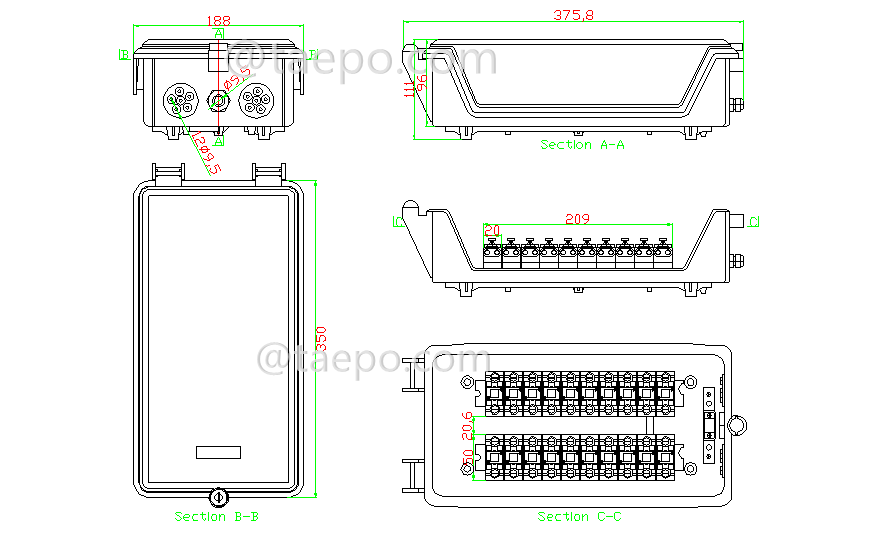

Schematic Diagrams

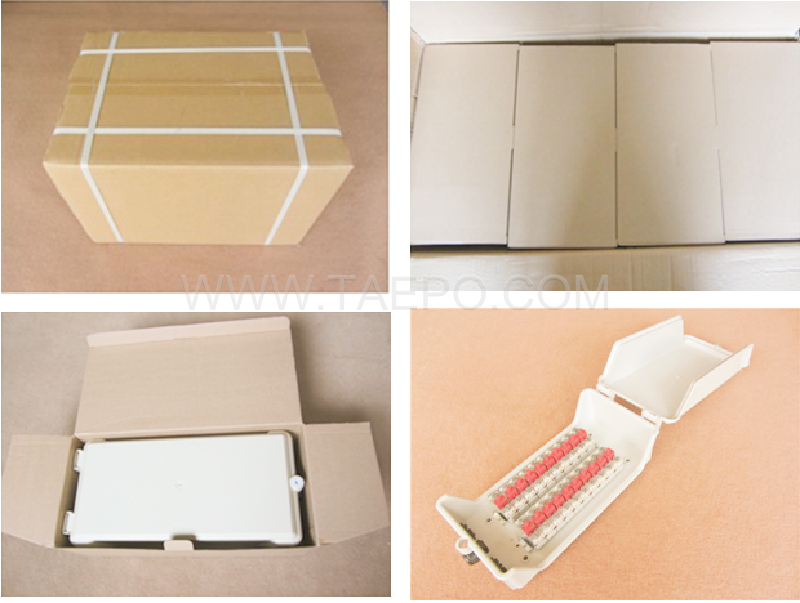

Packing Pictures
Order Data
Item No | Descriptions |
TP-1712-20MG | Outdoor 20 pairs distribution point box for STB module, 350x188x111mm, key locking, plastic housing, with STB module with over-voltage protection |
