UY2 Butt Connector for Secure Electrical Connections

TP-1310-UY2

UY2 butt connector with dual pins and gel filling for 2-wire, 0.4-0.9mm conductor with max insulation of 2.08mm. Perfect for electrical connections.

Quantity

Contact Now

add to cart

Descriptions

The UY2 butt connector provides a secure and reliable solution for electrical connections. The dual pins ensure consistent and strong contact, and the gel filling protects against moisture and environmental factors. It is compatible with 2-wire, 0.4-0.9mm conductors, with a maximum insulation diameter of 2.08mm. Ideal for a wide range of applications, this connector is perfect for both indoor and outdoor settings.

It solves issues related to splicing wires, providing a durable connection that can withstand the rigors of daily use. It is easy to use, requires no special tools, and is suitable for DIY and professional installations.

UY2 butt connector (TP-1310-UY2) the small size of the UY2 connector reduces the splicing bundle O.D. to a minimum. The connector’s two ports accept two solid or stranded copper conductors. The connector is filled with a sealant to provide moisture resistance.It is employs an insulation displacement contact (IDC) so that stripping of the conductor insulation prior to installation is not required,and easily installed and crimped using any of the connector crimping tools (TP-5931-311)

It is applied to telephone wiring connection. The butt connector is designed for 0.4mm-0.9mm solid copper cables with max insulation diameters 2.08mm.

The connector is filled with a moisture resistant compound in order to provide moisture proof connections.The connector can provide total environmental sealing around IDC-contacts.

Main Features

1.Insulation Displacement Connection

2.No Wire-stripping, screw and solder free

3.Reliable connections

4.Gas tight connection

5.One crimping wire connection

6.Robust long-term environmental stability

7.Translucent material-less mistakes

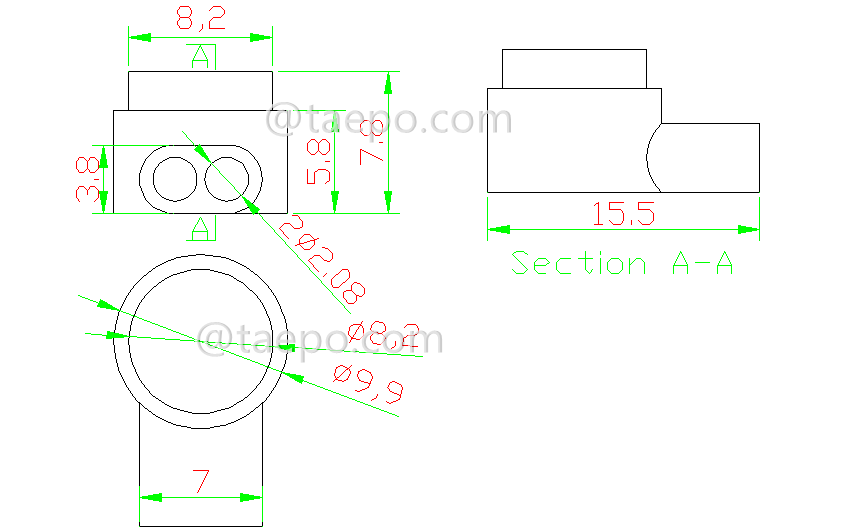

Schematic Diagrams

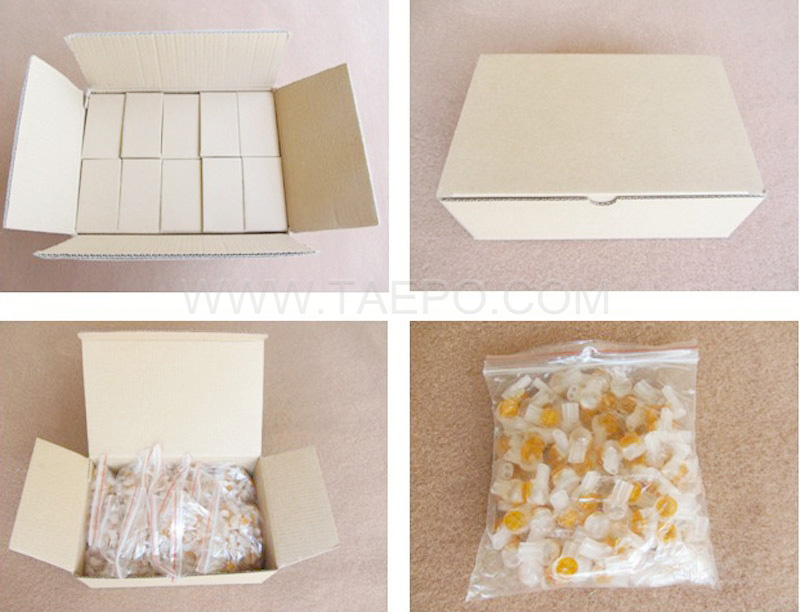

Packing Pictures

Order Data

Item No	Descriptions
TP-1310-UY2	UY2 butt connector, 2-wire, 0.4-0.9mm conductor, max insulation 2.08mm, dual pins, gel filled
