2 wire gel filled UY butt connector

TP-1310-UY

A highly efficient and reliable UY butt connector suitable for 2-wire connections characterized by a single pin configuration and gel-filled insulation.

Quantity

Contact Now

add to cart

Descriptions

The UY Butt Connector is a highly efficient and reliable single pin connector suitable for 2-wire connections. It makes use of a gel-filled insulation that provides enhanced protection against moisture and corrosion.

This connector is easy to use and can be installed quickly even by novice users. It is ideal for a range of applications including telecommunications, cable TV, and audio-visual installations. It solves the major issue of wire stripping, which can be time-consuming and difficult, especially for inexperienced users.

In addition, its insulation provides long-term protection against moisture, which can cause damage to the wiring leading to fluctuating connections, intermittent performance, and ultimately failure. The UY Butt Connector is an excellent choice for anyone looking for a reliable and cost-effective solution to their connectivity requirements.

UY butt connector (TP-1310-UY) the small size of the UY connector reduces the splicing bundle O.D. to a minimum. The connector’s two ports accept two solid copper conductors. The connector is filled with a sealant to provide moisture resistance.It is employs an insulation displacement contact (IDC) so that stripping of the conductor insulation prior to installation is not required,and easily installed and crimped using any of the connector crimping tools (TP-5931-311)

It is applied to telephone wiring connection. The butt connector is designed for 0.4mm-0.7mm solid copper cables with max insulation diameters 1.52mm.

The connector is filled with a moisture resistant compound in order to provide moisture proof connections.The connector can provide total environmental sealing around IDC-contacts. Traction resistance must be at least 75% of cable rupture resistance Category 5, according to EIA/TIA 568A

Main Features

1.Insulation Displacement Connection

2.No Wire-stripping, screw and solder free

3.Reliable connections

4.Gas tight connection

5.One crimping wire connection

6.Robust long-term environmental stability

7.Translucent material-less mistakes

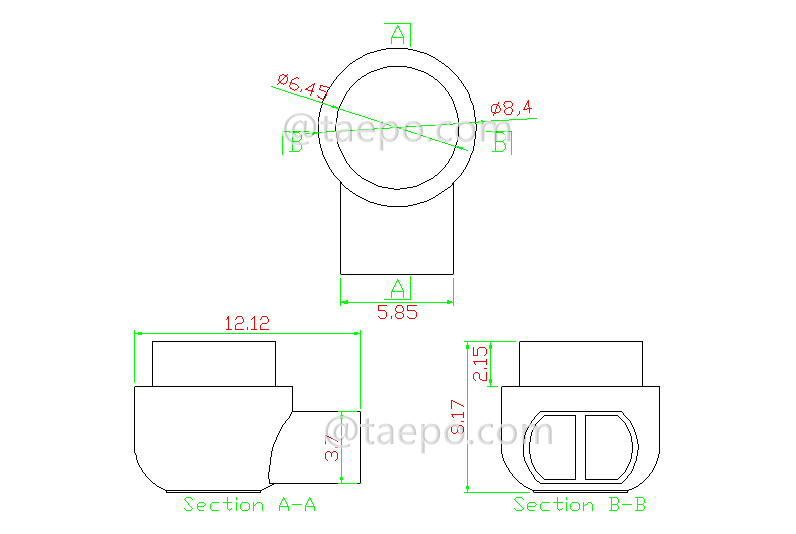

Schematic Diagrams

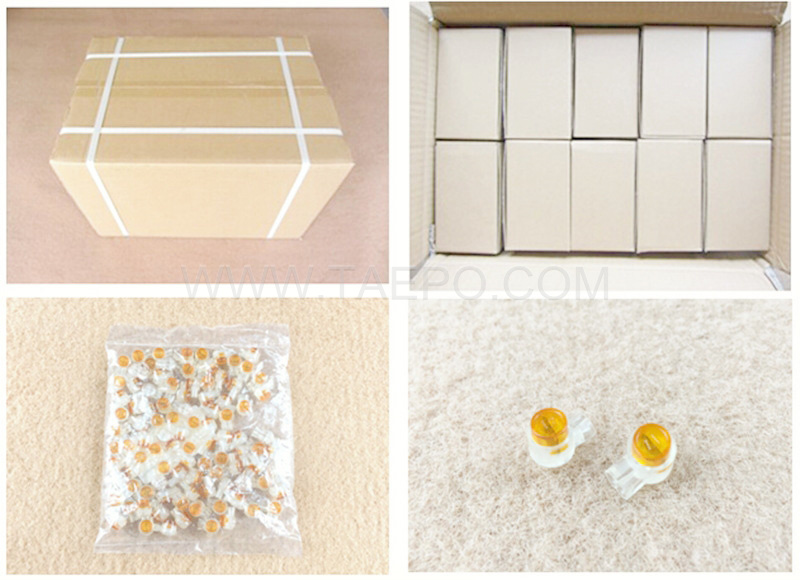

Packing Pictures

Order Data

Item No	Descriptions
TP-1310-UY	UY butt connector, 2-wire, 0.4-0.7mm conductor, max insulation 1.52mm, single pin, gel filled
